1209 Series Adjustable Drawer Slide Pilaster System, Drawer Box Suspension System

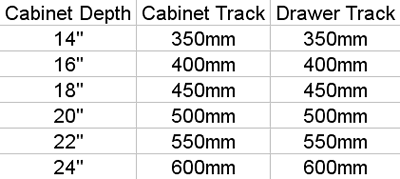

Standard Slide Dimensions for Pantry Base Kits

Pantry System

The 3/4 extension sidemount pantry system provides four 58" pilasters and five sets of self-closing drawer slides with attached 8mm dowels for five roll-out shelves or drawers.

The full extension pantry system provides four 58" pilasters and five sets of full extension ball bearing slides with 8mm attached dowels for five full extension roll-out shelves or drawers.

The 58" pilasters mount into the cabinet or closet opening to easily provide vertical adjustment as storage needs change in the pantry. The drawer slides come with attached dowels, once the pilasters are in place the drawer slides can be plugged into the pilasters to suit the individual customers application.

Base System

The 3/4 extension sidemount base system provides four 21 7/16" pilasters and two sets of self-closing drawer slides with attached 8mm dowels for two roll-out shelves / drawers.

The full extension base system provides four 21 7/16" pilasters and two sets of full extension ball bearing drawer slides with attached 8mm dowels for two roll-out shelves / drawers.

The 21 7/16" pilasters mount into the cabinet or closet opening to easily provide vertical adjustment as storage needs change in the kitchen.

Houck Industries Pilaster Storage Systems are the perfect storage solution for household installations, general contractors or cabinet manufacturers.

Unlike plastic or metal adjustable drawer slide systems on the market, Houck pilasters can be easily cut or trimmed to fit.

Houck 1209 drawer slides with attached dowels and Houck pilasters can be purchased by calling customer service 812-663-5675 x223.

Houck now has pilasters available with a 5mm hole pattern to accommodate drawer slides and hardware that uses 5mm dowels.

Select sizes available now on eBay

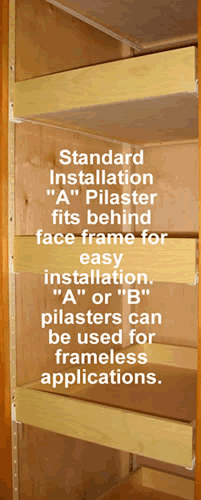

Typical Pantry System (Base system the same but uses shorter pilasters)

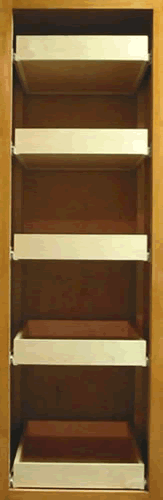

1209 Adjustable Pantry

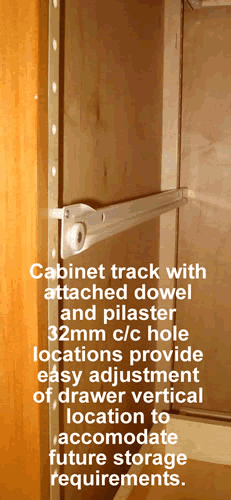

1209 Adjustable Pantry A Pilaster
1209 Adjustable Pantry dowel

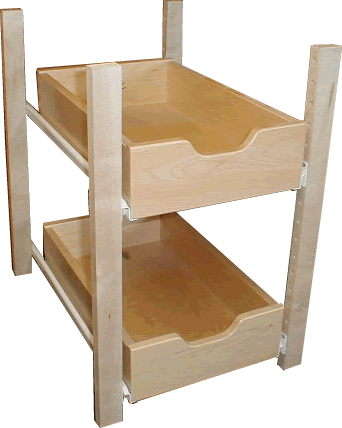

Typical Base System Freestanding

1209 Adjustable Base Kit


All Houck 100, 150, 200, 500, 950 and 1209 drawer slides are made and assembled in America using domestic suppliers.
