200 Series Slide System

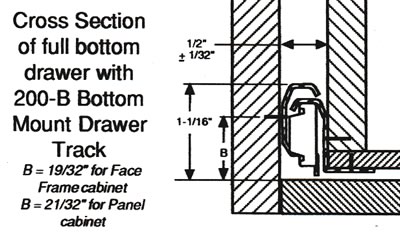

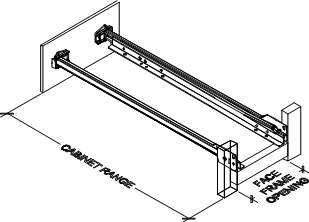

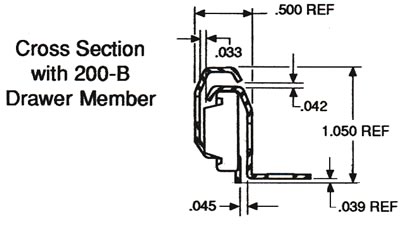

Installation Specifications

SPECIFICATIONS:
Material: Cold Rolled Steel
Colors: White, Almond
Capacity: 75 lbs loading
Fastening: Side or Bottom
Packaging: Set, 20 Pack, 100 Bulk
Custom Orders: 100 set minimum*
*Custom orders less than 25 sets are accepted, however setup charges will apply to custom orders less than 25 pair.

FEATURES:
• Quattro captured for accurate tracking
• Roll formed for smooth, quiet roll
• Patented self-adjusting wheels for mounting tolerances
• Optional brackets

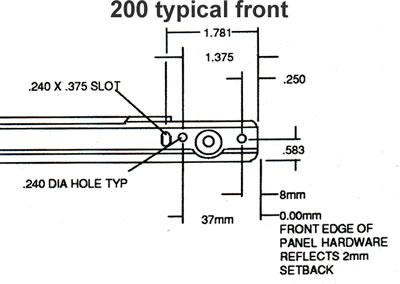

• Standard hole and slot for correctly positioning the slide for installation
• Optional rear configurations are available.
• Available in custom lengths up to 36”
• Custom lengths 200 SSL available with welded brackets for bottom mount rollout applications.

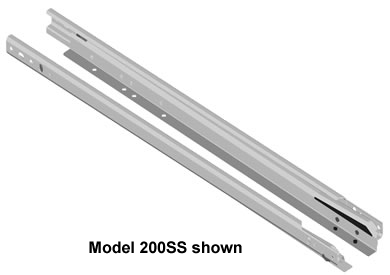

200 Series Rear Mounting Configurations, 200SV, 200SS, 200SP



200 Series Rear Bracket Options



All Houck 100, 150, 200, 500, 950 and 1209 drawer slides are made and assembled in America using domestic suppliers.
