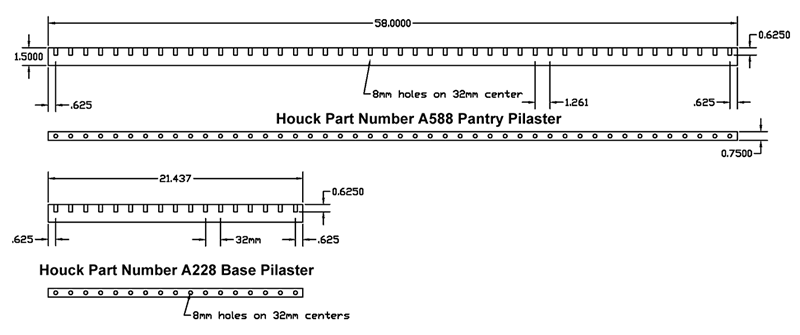

"A" Pilaster

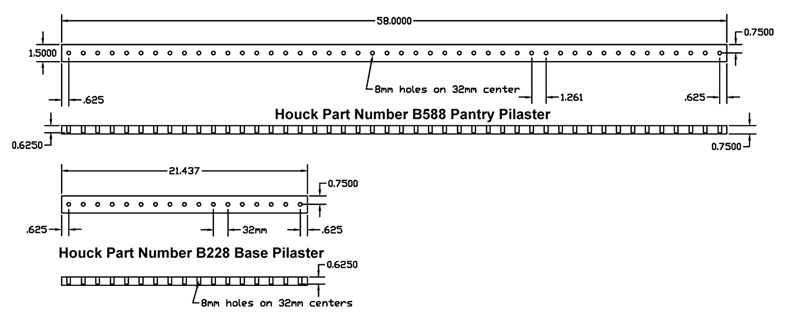

"B" Pilaster

"A" Pilaster Base Part A228

Dowel Drawing

"B" Pilaster Base Part B228

Dowel Drawing

Length
21 7/16"
Width
3/4"
Thickness
1 1/2"
Hole Size
8mm
Hole Quantity
17
C/L of Holes
32mm
Material
Soft Maple
Length
21 7/16"
Width
1 1/2"
Thickness
3/4"
Hole Size
8mm
Hole Quantity
17
C/L of Holes
32mm
Material
Soft Maple
"A" Pilaster Pantry Part A588
"B" Pilaster Pantry Part B588
Length
58"
Width
3/4"
Thickness
1 1/2"
Hole Size
8mm
Hole Quantity
46
C/L of Holes
32mm
Material
Soft Maple
Length
58"
Width
1 1/2"
Thickness
3/4"
Hole Size
8mm
Hole Quantity
46
C/L of Holes
32mm
Material
Soft Maple

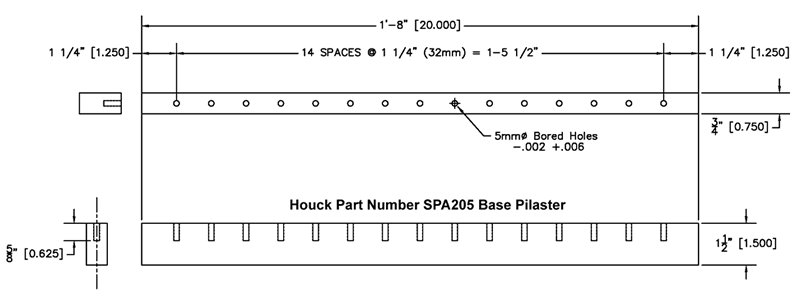

"A" Special Pilaster Base Part SPA205

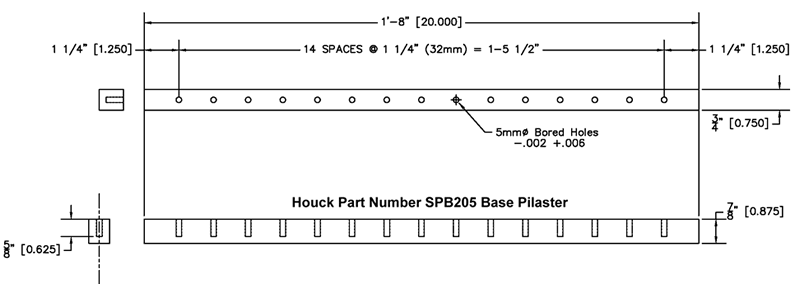

"B" Special Pilaster Base Part SPB205
Length
20"
Width
3/4"
Thickness
1 1/2"
Hole Size
5mm
Hole Quantity
15
C/L of Holes
32mm
Material
Soft Maple
Length
20"
Width
3/4"
Thickness
7/8"
Hole Size
5mm
Hole Quantity
15
C/L of Holes
32mm
Material
Soft Maple

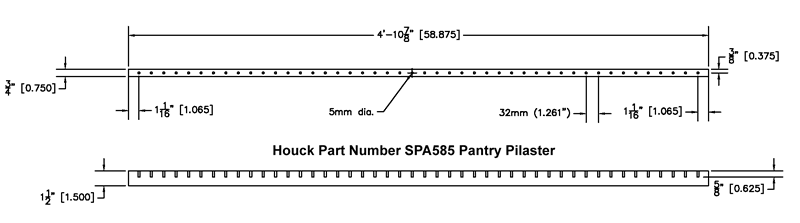

"A" Special Pilaster Pantry Part SPA585

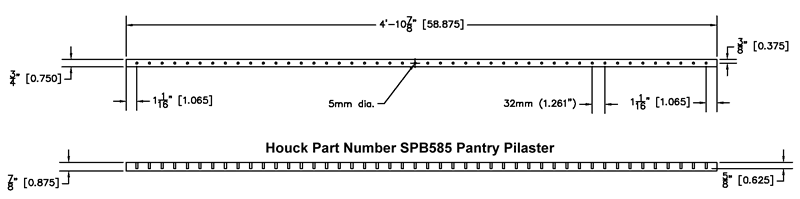

"B" Special Pilaster Pantry Part SPB585
Length
58 7/8 "
Width
3/4"
Thickness
1 1/2"
Hole Size
5mm
Hole Quantity
46
C/L of Holes
32mm
Material
Soft Maple
Length
58 7/8 "
Width
3/4"
Thickness
7/8"
Hole Size
5mm
Hole Quantity
46
C/L of Holes
32mm
Material
Soft Maple

The Houck Pilaster System is designed to work with any standard base or vanity cabinets, desks, entertainment centers or closets. Houck 1209 series drawer slides feature pre-installed dowels on the cabinet track for easy and secure installation in the pilasters for a complete adjustable shelf or rollout tray application. The universal side/bottom mount drawer track is designed to fit all standard drawer boxes. Pilaster can be cut to custom lengths by the customer and manufactured custom pilaster lengths can be ordered for special applications.


All Houck 100, 150, 200, 500, 950 and 1209 drawer slides are made and assembled in America using domestic suppliers.
