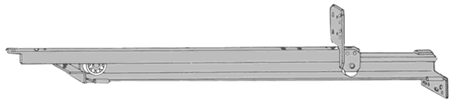

Houck 500 Series Concealed Undermount Slides
GoEz GOEZ Undermount slides

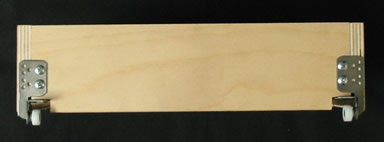

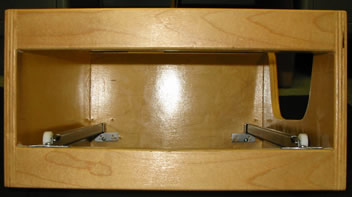

500 series in drawer

SPECIFICATIONS:
Material: Cold Rolled Steel
Colors: Satin, White, Almond
Capacity: 50 lb cycle, 75 lb edge load*
Fastening: Side or Bottom
Packaging: Polybagged Set, 25 Pack or 100 Bulk
Custom Orders: 100 set minimum**
*Per ANSI/BHMA A156.9-2003, 4.11-4.11.4 3.3 Grade 1
**Custom orders less than 100 sets are accepted; however setup charges will apply to custom orders less than 100 sets.

FEATURES:
• New acetyl wheels provides longer wear and higher load capacity.
• Concealed system mounts to bottom of drawer for maximum drawer width and clean drawer side appearance
• 4 Point suspension
• Axle exceeds 100 lbs capacity
• Dual dimple stop provide safety stop and lock open access
• Brackets designed with staple pattern
• Available with self-close option

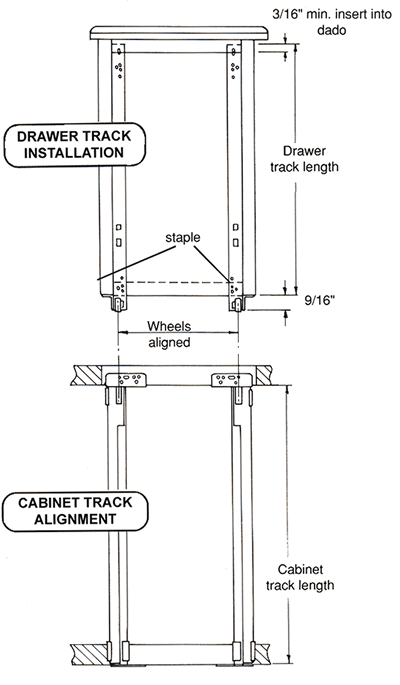

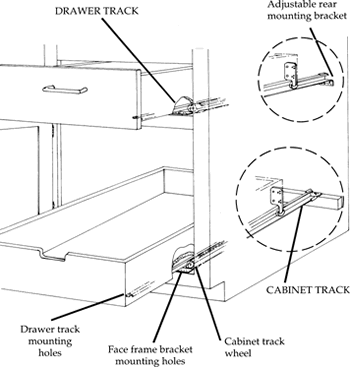

500 series installation

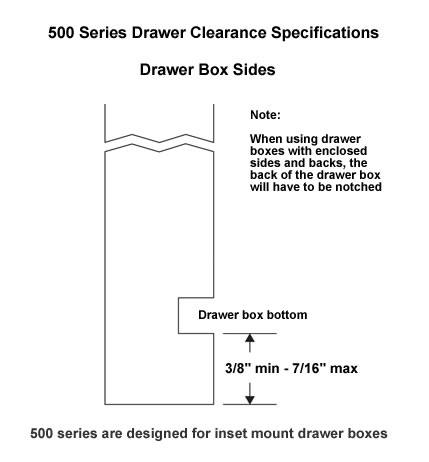

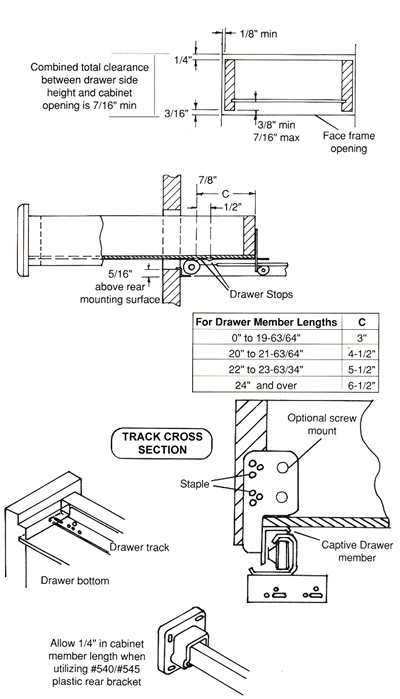

500 series specifications

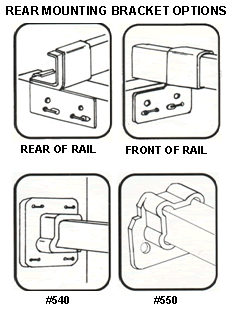

500 series brackets
GOEZ, GoEz, Old drawer slides, old undermount slides
copper colored slides
old undermount slides
GOEZ drawer mounting bracket
Measuring 500 series GOEZ GoEz slides

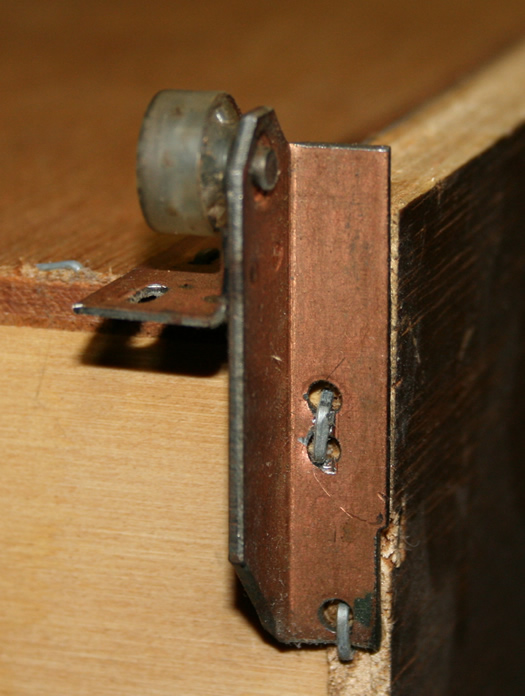

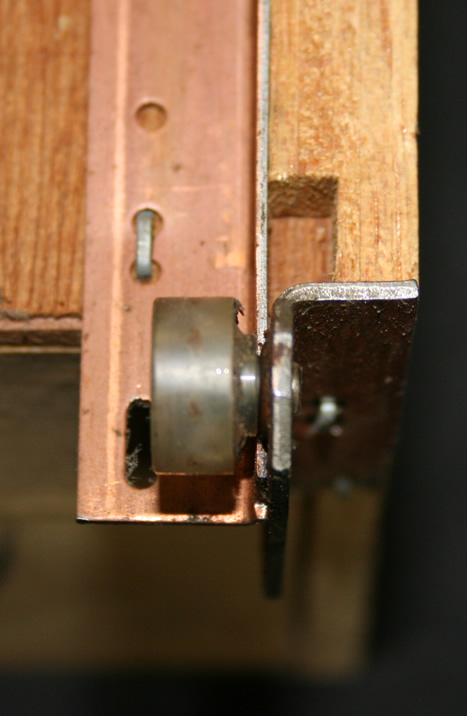

Discontinued style 500 drawer track mounting bracket

500 Series High Resolution Image

500 series universal replacements will replace this old style bracket

NEW** GO-EZ 524 UNIVERSAL KIT— Poly-bagged 524 kit includes mounting brackets and installation instructions. Parts can be trimmed to replace any length 500 series GO-EZ slides. Perfect for replacements or new installations.
Looking for old drawer slides, or old undermount drawer slides, old concealed slides, old concealed undermount slides, copper colored slides or brass colored slides? If you have slides that have been in your home for 20, 30, 40 or more years (company was started in 1958) then you may have Houck GOEZ, GoEz, Go EZ, 500 series concealed undermount drawer slides. We have replacement 500 series slides, replacement GOEZ slides in stock and on eBay.


All Houck 100, 150, 200, 500, 950 and 1209 drawer slides are made and assembled in America using domestic suppliers.
